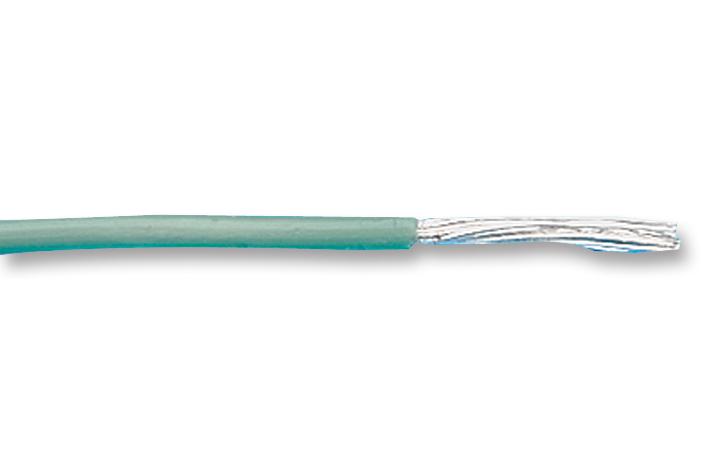

LAPP KABEL - 0048006 - Wire, Stranded, Hook Up, Hi Temp, Silicone, Green, 21 AWG, 0.5 mm², 328 ft, 100 m
- Jacket Material: Silicone
- Jacket Colour: Green
- Wire Gauge: 21AWG
- Conductor Area CSA: 0.5mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- No. of Max Strands x Strand Size: 16 x 0.2mm
- Voltage Rating: 300V
- Conductor Material: Tinned Copper
- External Diameter: 2.1mm
- Approval Specification: -
- Product Range: Olflex Heat 180 SiF Series
- SVHC: No SVHC (15-Jan-2019)
- Conductor Make-up: 16 / 0.2mm
- Current Rating: 9A
- Operating Temperature Max: 180°C
- Operating Temperature Min: -50°C
- Outer Diameter: 2.1mm
- Voltage Rating VAC: 300V
