Description

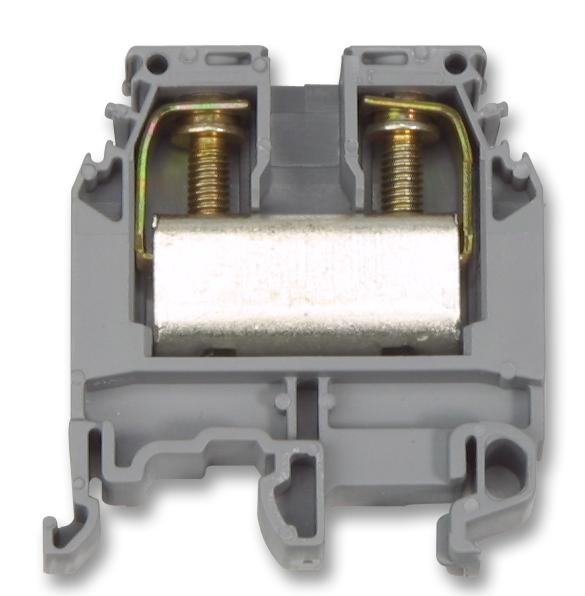

ENTRELEC - TE CONNECTIVITY - 011512914 - DIN Rail Mount Terminal Block, 2 Ways, 18 AWG, 6 AWG, 16 mm², Screw, 85 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 18AWG
- Wire Size AWG Max: 6AWG
- Conductor Area CSA: 16mm²
- Wire Connection Method: Screw
- Rated Current: 85A
- Rated Voltage: 800V
- No. of Levels: 1
- Product Range: -
- Approval Bodies: CSA, GOST, KEMA, NEMKO, NORSKE VERITAS, SEMKO, SETI, SEV, UL
- Colour: Grey
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- Contact Material: Steel
- External Length / Height: 53mm
- External Width: 44.5mm
- Material: Polyamide
- Operating Temperature Max: 130°C
- Operating Temperature Min: -50°C
- Pitch Spacing: 12mm
- Voltage Rating VAC: 750V
- Wire Area Size Max: 25mm²
- Wire Area Size Min: 0.5mm²
