Description

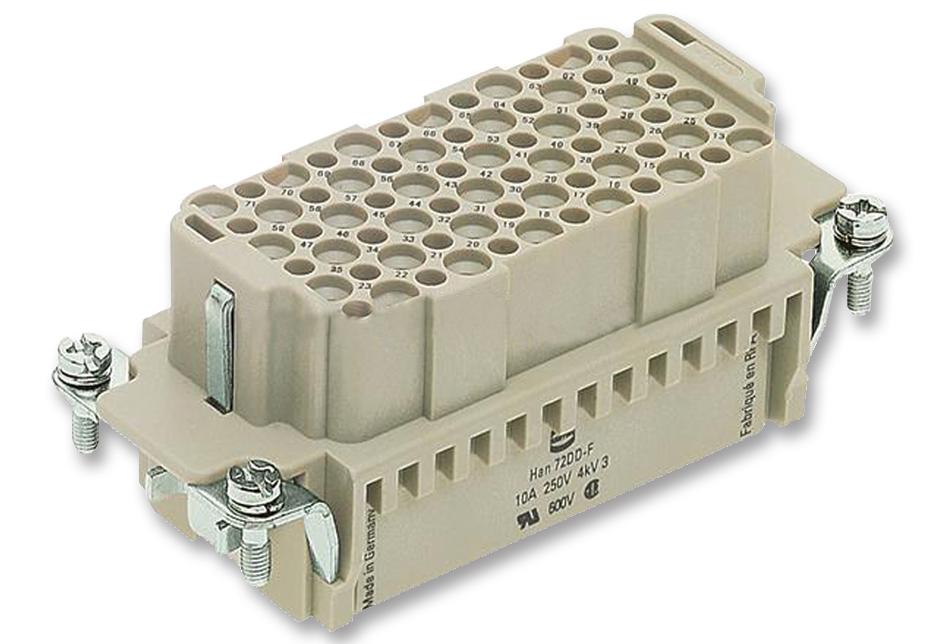

HARTING - 0916 072 3101 - Heavy Duty Connector, 72+PE, Less Contacts, Han DD, Insert, 73 Contacts, 16B, Receptacle
- Product Range: Han DD Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 73 Contacts
- Rectangular Shell Size: 16B
- Gender: Receptacle
- Heavy Duty Contact Type: Crimp Socket - Contacts Not Supplied
- Current Rating: 10A
- SVHC: No SVHC (15-Jan-2018)
- Contact Termination: Crimp
- For Use With: Han D Socket Crimp Contacts, Han Thermocouple Socket Contacts
- Insert Type: Thermocouple
- No. of Contacts: 73Contacts
- No. of Positions: 73Ways
- No. of Rows: 6 Row
- No. of Rows: 6Rows
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Voltage Rating: 250V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.14mm²
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 26AWG
- Working Voltage: 250V
