Description

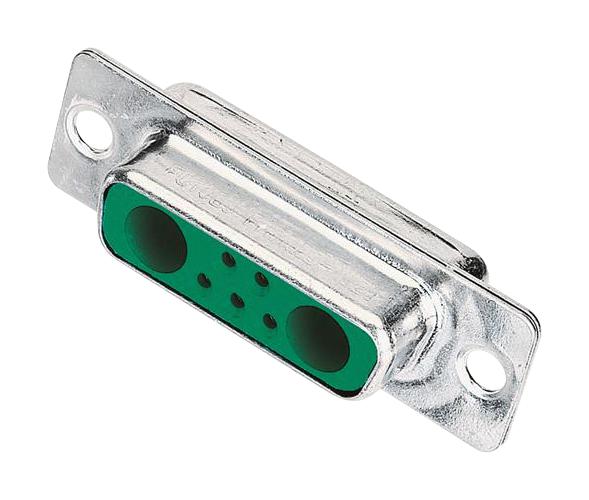

HARTING - 09693017172 - Combination Layout D Sub Connector, 17W2, D Sub-M, DB-17W2, Receptacle, 17 Contacts
- Product Range: D Sub-M Series
- Insert Arrangement: DB-17W2
- No. of Signal Contacts: 15Contacts
- Gender: Receptacle
- No. of Power Positions: 2
- Contact Termination Type: Solder Cup
- D Sub Shell Size: DB
- Connector Body Material: Metal Body
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting: Cable Mount
- Connector Shell Size: DB
- Connector Type: Combo Layout D Sub
- Contact Type: 15 Signal, 2 Power
- For Use With: Harting Signal & Power Contacts
- No. of Contacts: 17Contacts
- No. of Positions: 17Ways
