Description

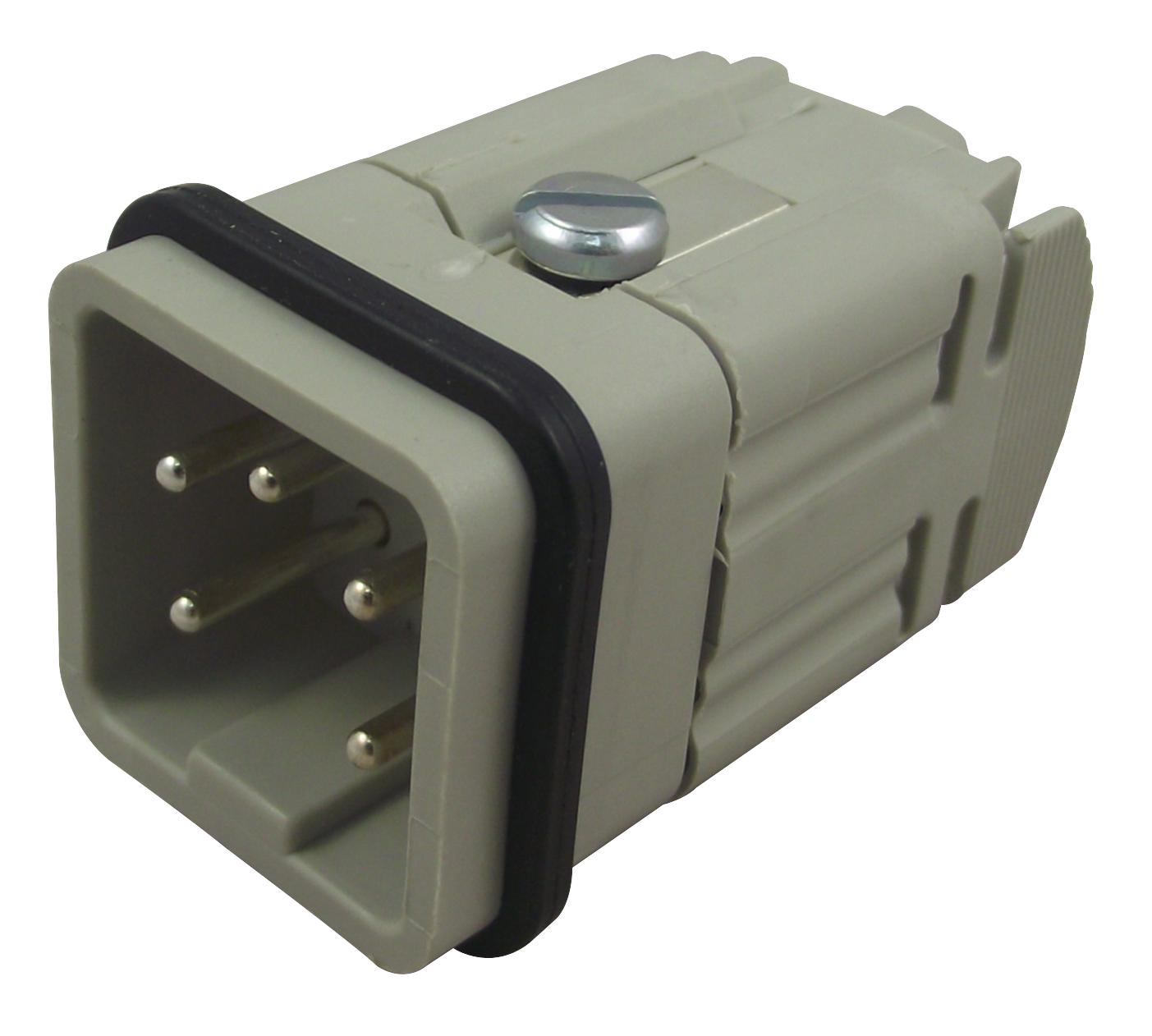

EPIC - 10.4310 - Rectangular Power Connector, Insert, 4 Contacts, EPIC, Panel Mount, Screw, Plug
- No. of Contacts: 4Contacts
- Product Range: EPIC Series
- Connector Mounting: Panel Mount
- Contact Termination Type: Screw
- Pitch Spacing: -
- Gender: Plug
- Contact Gender: -
- Contact Material: Copper Alloy
- Contact Plating: Silver Plated Contacts
- Connector Shell Size: -
- No. of Rows: 2Rows
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL, VDE
- Colour: Grey
- Conduit Thread Size: PG11
- Connector Type: Rectangular Power
- Contact Termination: Screw
- Current Rating: 10A
- IP / NEMA Rating: IP65
- Material: Thermoplastic Resin
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Termination Method: Screw
- Voltage Rating VAC: 400V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.5mm²
- Working Voltage: 400V
