Description

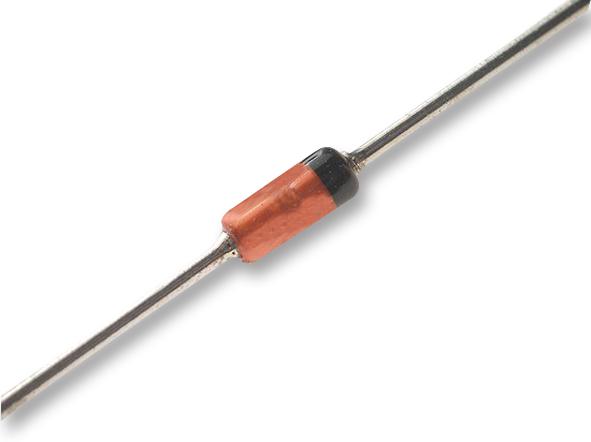

STMICROELECTRONICS - 1N6263 - Small Signal Schottky Diode, Single, 60 V, 15 mA, 410 mV, 50 mA, 200 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 60V
- Forward Current If(AV): 15mA
- Forward Voltage VF Max: 410mV
- Forward Surge Current Ifsm Max: 50mA
- Operating Temperature Max: 200°C
- Diode Case Style: DO-204AH
- No. of Pins: 2Pins
- Product Range: 1N6263 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: SOD-27
- Breakdown Voltage Vbr: 60V
- Capacitance Ct: 2.2pF
- Current Ir Max: 10µA
- Diode Type: Schottky
- External Diameter: 1.85mm
- External Length / Height: 4.06mm
- Forward Current If Max: 15mA
- Forward Voltage: 410mV
- Power Dissipation Ptot Max: 400mW
- Reverse Voltage Vr: 60V
- Thermal Capacitance Ct: 2.2pF
