412JH Fan, 40mm, 12VDC, H ebm-papst

EBM-PAPSTSKU: 412JH Order code: 9600760

Price:
Sale price€67,60

Tax included Shipping calculated at checkout

Stock:
In stock (62 units), ready to be shipped

Documenten en downloads

Description

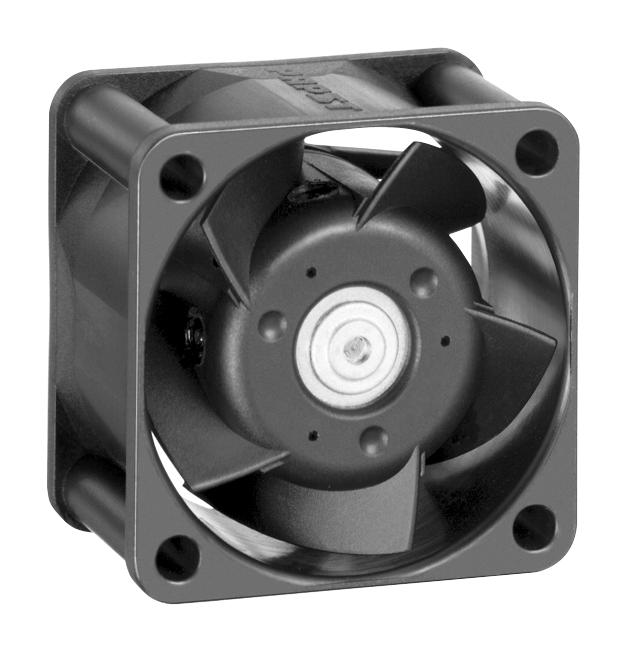

EBM-PAPST - 412JH - DC Axial Fan, 12 V, Square, 40 mm, 25 mm, Ball Bearing, 12.9 CFM

  • Supply Voltage: 12V
  • Current Type: DC
  • Fan Frame Size: 40mm
  • External Depth: 25mm
  • Noise Rating: 43dBA
  • Flow Rate - Imperial: 12.9cu.ft/min
  • Flow Rate - Metric: 22m³/h
  • Bearing Type: Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: -
  • Product Range: 400J Series
  • Power Rating: 3W
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Bodies: CSA, UL, VDE
  • Current Consumption: 245mA
  • External Height: 40mm
  • External Width: 40mm
  • Fixing Centres: 32mm
  • Fixing Hole Diameter: 3.5mm
  • Frame Dimensions: 40mm x 40mm x 25mm
  • Input Voltage Max: 13.5V
  • Input Voltage Min: 8V
  • Lead Length: 310mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Operating life Time: 55000h
  • Power Consumption: 2.9W
  • Speed Range Max: 11700rpm
  • Supply Voltage DC Max: 13.5V
  • Supply Voltage DC Min: 8V
  • Weight: 50g
