Description

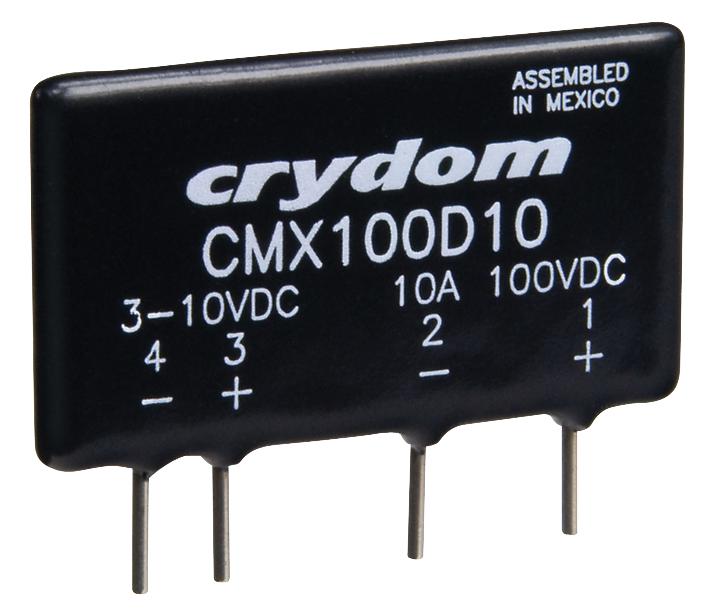

SENSATA/CRYDOM - CMXE100D10 - Solid State Relay, CMX Series, DIP, DC Output, 10 A, 100 VDC, PCB, Through Hole
- Contact Configuration: -
- Load Current: 10A
- Operating Voltage Max: 100VDC
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: -
- Operating Voltage Min: 0VDC
- Control Voltage Min: 20VDC
- Control Voltage Max: 28VDC
- Product Range: CMX Series
- SVHC: No SVHC (07-Jul-2017)
- Control Voltage Type: DC
- Forward Current If: 12mA
- Input Current: 12mA
- Input Voltage: 20V DC to 28V DC
- Isolation Voltage: 2.5kV
- Load Current Min: 0mA
- Load Voltage Max: 60VDC
- Load Voltage Range: 0V DC to 100V DC
- On State Resistance Max: 0.018ohm
- Output Type: MOSFET
