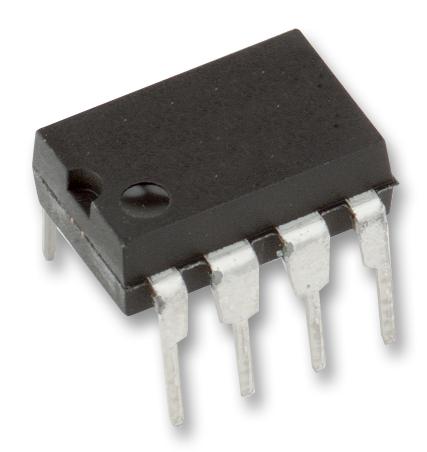

INFINEON - IR2104PBF - Dual MOSFET IC, Half Bridge, 10V-20V Supply, 360mA Out, 150ns Delay, DIP-8
- Driver Configuration: Half Bridge
- Peak Output Current: 360mA
- Supply Voltage Min: 10V
- Supply Voltage Max: 20V
- Driver Case Style: DIP
- No. of Pins: 8Pins
- Input Delay: 680ns
- Output Delay: 150ns
- Operating Temperature Min: -55°C
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 2104
- Device Type: MOSFET Driver
- Logic Function Number: 2104
- Module Configuration: Half Bridge
- No. of Outputs: 2Outputs
- Offset Voltage: 600V
- Operating Temperature Range: -55°C to +150°C
- Output Current: 210mA
- Output Sink Current Min: 270mA
- Output Source Current Min: 130mA
- Output Voltage: 620V
- Power Dissipation Pd: 1W
- Supply Voltage Range: 10V to 20V
- Termination Type: Through Hole
