Description

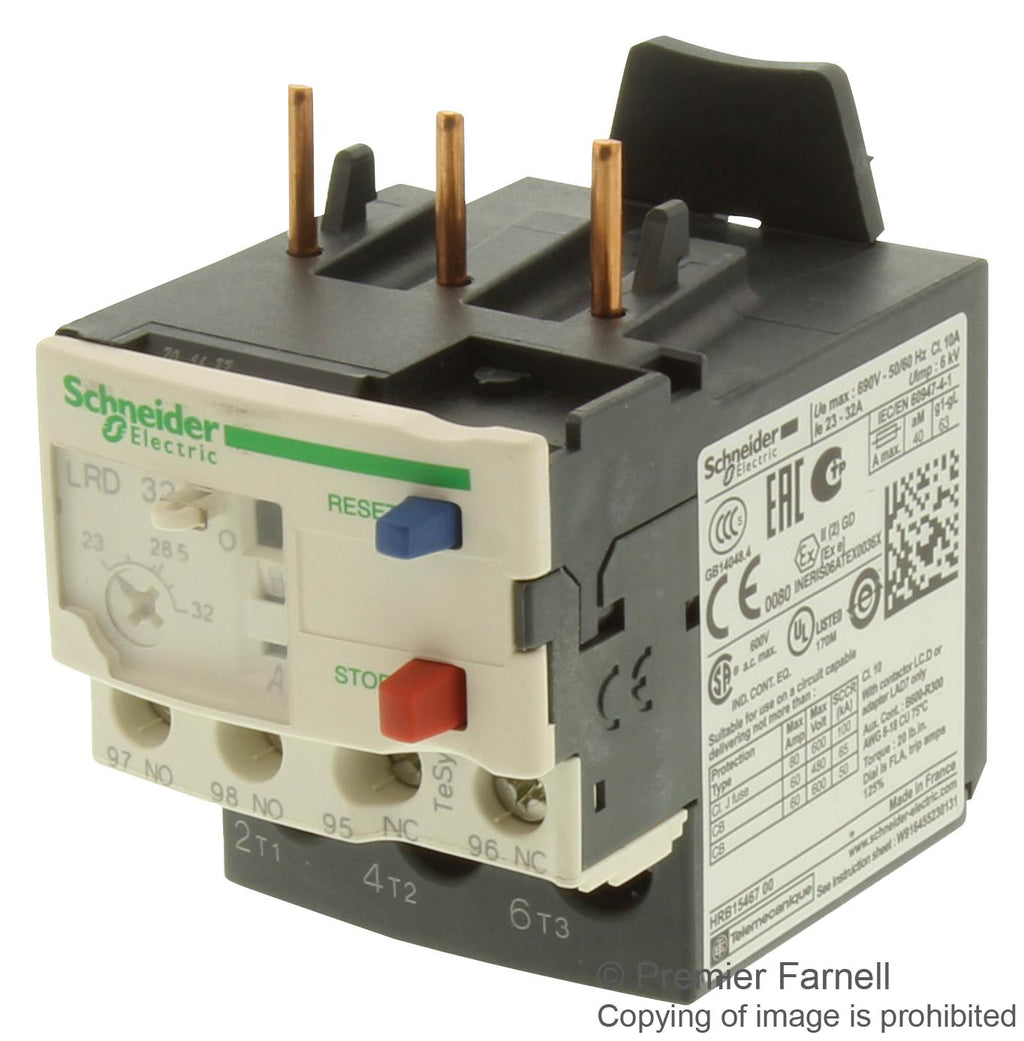

SCHNEIDER ELECTRIC - LRD32 - Overload Relay, LRD3, 23 A, 32 A, TeSys Deca Overload Relay
- Overload Adjustment Current Min: 23A
- Overload Adjustment Current Max: 32A
- Coil Voltage AC Max: -
- Coil Voltage DC Max: -
- Product Range: LRD Series
- SVHC: No SVHC (15-Jan-2018)
- External Depth: 70mm
- External Length / Height: 51mm
- External Width: 45mm
- For Use With: LC1D25 to LC1D38 Contactor
- Height: 51mm
- IP / NEMA Rating: IP2X
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Standard: EN60947 - 1
- Supply Voltage Max: 600V
- Weight: 0.124kg
