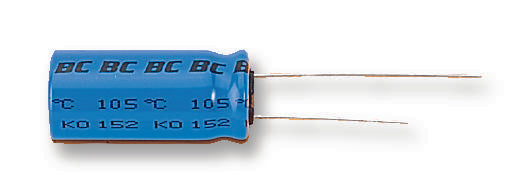

MAL215262101E3 Cap, 100µF, 200V, 20%, Through Hole Vishay

VISHAYSKU: MAL215262101E3 Order code: 1165456

Price:
Sale price€6,69

Tax included Shipping calculated at checkout

Stock:
In stock (867 units), ready to be shipped

Documenten en downloads

Description

VISHAY - MAL215262101E3 - Electrolytic Capacitor, 100 µF, 200 V, ± 20%, Radial Leaded, 4000 hours @ 105°C, Polar

  • Capacitance: 100µF
  • Voltage Rating: 200V
  • Product Range: 152 RMH Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 16mm
  • Lead Spacing: 7.5mm
  • Height: 20mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Lifetime @ Temperature: 4000 hours @ 105°C
  • ESR: 1.9ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 340mA
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • External Length / Height: 20mm
  • Impedance: 0.4ohm
  • Lead Diameter: 0.8mm
  • Lead Length: 5mm
  • Leakage Current: 670µA
  • No. of Pins: 2Pins
  • Operating Life Temperature: 105°C
  • Operating Temperature Range: -40°C to +105°C
  • Operating life Time: 4000h
  • Ripple Current AC: 340mA
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 105°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 200V
  • Voltage Rating V DC: 200V
