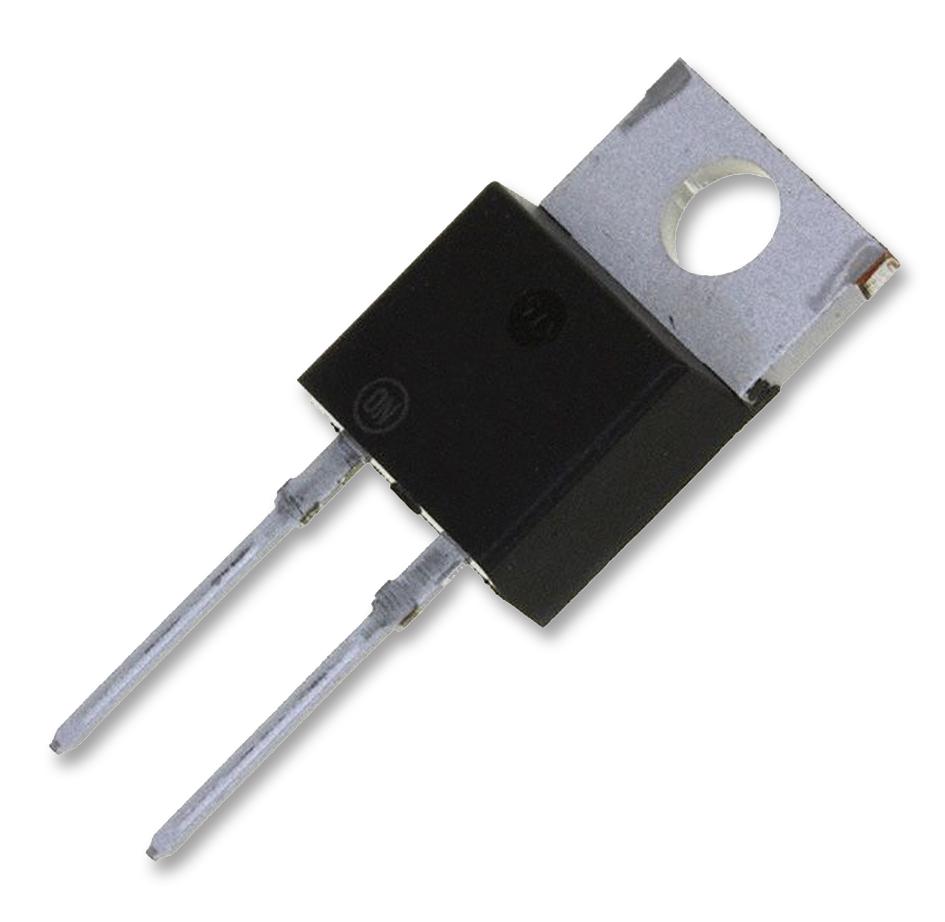

MUR1520G Diode, Fast Recovery, 15A ONSEMI

ONSEMISKU: MUR1520G Order code: 9556990

Price:
Sale price€2,74

Tax included Shipping calculated at checkout

Stock:
In stock (20795 units), ready to be shipped

Documenten en downloads

Description

ONSEMI - MUR1520G - Fast / Ultrafast Diode, 200 V, 15 A, Single, 1.05 V, 35 ns, 200 A

  • Repetitive Reverse Voltage Vrrm Max: 200V
  • Forward Current If(AV): 15A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.05V
  • Reverse Recovery Time trr Max: 35ns
  • Forward Surge Current Ifsm Max: 200A
  • Operating Temperature Max: 175°C
  • Diode Case Style: TO-220AC
  • No. of Pins: 2 Pin
  • Product Range: MUR15 Series
  • Automotive Qualification Standard: -
  • SVHC: Lead (27-Jun-2018)
  • Current Ifsm: 200A
  • Diode Type: Soft Recovery
  • Forward Current If Max: 15A
  • Forward Voltage: 1.05V
  • Junction Temperature Tj Max: 175°C
  • No. of Pins: 2Pins
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Reverse Recovery Time trr Typ: 35ns
