Description

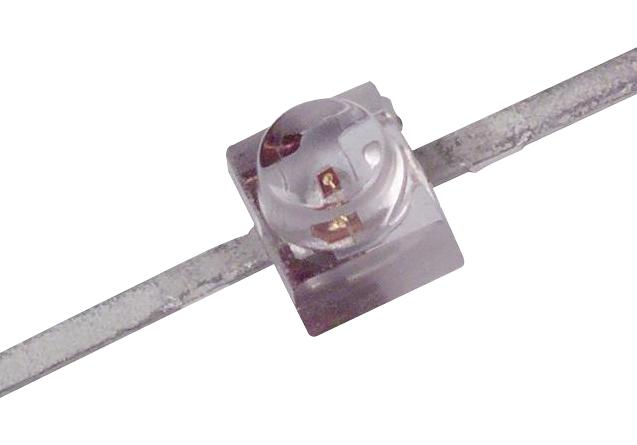

ONSEMI - QEB363GR - Infrared Emitter, 940 nm, 24 °, T-3/4 (1.8mm), 8 mW/Sr, 1 µs, 1 µs
- Peak Wavelength: 940nm
- Angle of Half Intensity: 24°
- Diode Case Style: T-3/4 (1.8mm)
- Radiant Intensity (Ie): 8mW/Sr
- Rise Time: 1µs
- Fall Time tf: 1µs
- Forward Current If(AV): 50mA
- Forward Voltage VF Max: 1.6V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 100°C
- Automotive Qualification Standard: -
- Product Range: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Viewing Angle: 24°
