Description

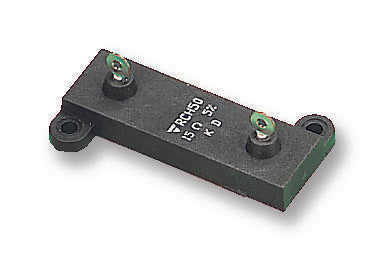

VISHAY - RCH50S3R300JS06 - Resistor, 3.3 ohm, RCH Series, 50 W, ± 5%, Solder Lug, 1.285 kV
- Resistance: 3.3ohm
- Product Range: RCH Series
- Power Rating: 5.5W
- Resistance Tolerance: ± 5%
- Resistor Case Style: -
- Voltage Rating: 1.285kV
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 150ppm/°C
- Automotive Qualification Standard: -
- External Depth: 29.4mm
- External Length / Height: 15mm
- External Width: 47.8mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Overload Voltage: 2500V
- Power Rating with Heatsink: 50W
- Resistor Mounting: Panel
- Resistor Terminals: Solder Lug
