Description

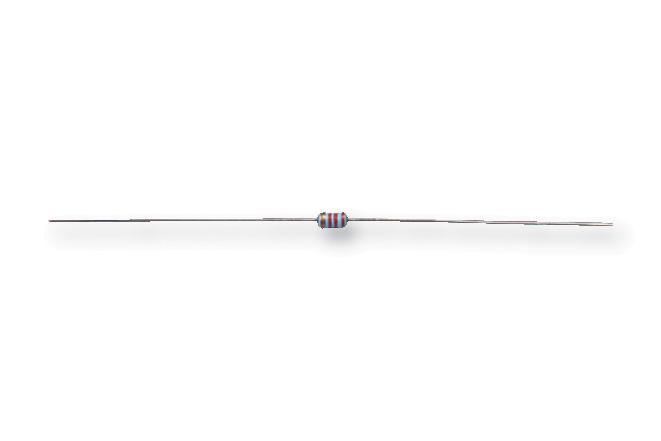

VISHAY - SFR16S0003900JA500 - Through Hole Resistor, 390 ohm, SFR16S, 500 mW, ± 5%, Axial Leaded, 200 V
- Resistance: 390ohm
- Product Range: SFR16S Series
- Power Rating: 500mW
- Resistance Tolerance: ± 5%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 200V
- Resistor Element Material: Metal Film
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 1.7mm
- External Length / Height: 3.4mm
- Full Power Rating Temperature: 70°C
- Lead Diameter: 0.5mm
- Lead Length: 26mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Reel Quantity: 5000
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 200V
