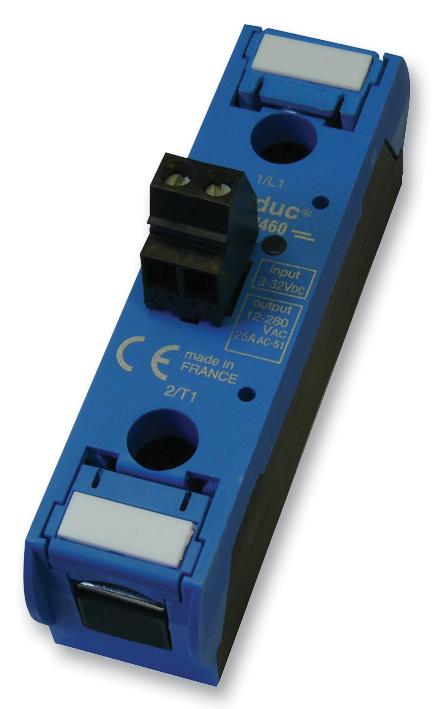

CELDUC - SU963460 - Solid State Relay, 35 A, 600 Vrms, Panel Mount, Screw, Zero Crossing
- Contact Configuration: -
- Load Current: 35A
- Operating Voltage Max: 600Vrms
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24Vrms
- Control Voltage Min: 3.5VDC
- Control Voltage Max: 32VDC
- Product Range: SU Series
- SVHC: No SVHC (07-Jul-2017)
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3.5VDC
- Control Voltage Range: 3.5V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 91mm
- External Length / Height: 70mm
- External Width: 22.5mm
- Isolation Voltage: 4kV
- Load Current RMS Max: 32A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Operating Voltage Range: 24Vrms to 600Vrms
- RMS Load Current Min: 0.05A
- RMS Load Voltage Max: 600V
- RMS Load Voltage Min: 24V
- Surge Current: 400A
