Description

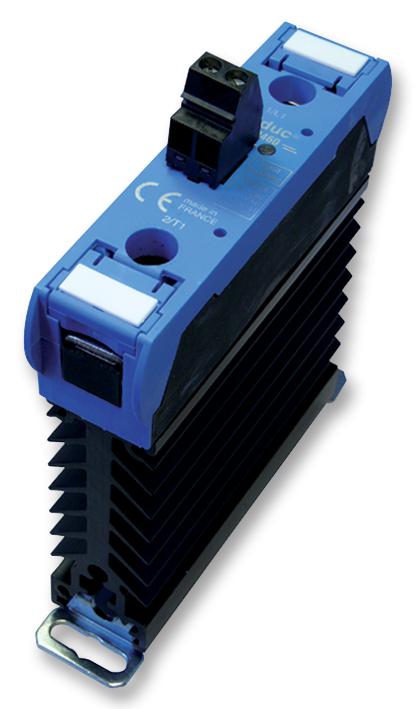

CELDUC - SUL842070 - Solid State Relay, 25 A, 275 VAC, DIN Rail, Screw, Zero Crossing
- Contact Configuration: -
- Load Current: 25A
- Operating Voltage Max: 275VAC
- Relay Mounting: DIN Rail
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 12VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 32VDC
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 91mm
- External Length / Height: 70mm
- External Width: 22.5mm
- Load Current RMS Max: 20A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Operating Voltage Range: 12V AC to 275V AC
- Peak Surge Current: 250A
- RMS Load Current Min: 0.05A
- RMS Load Voltage Max: 275V
- RMS Load Voltage Min: 12V
- Surge Current: 250A
