Description

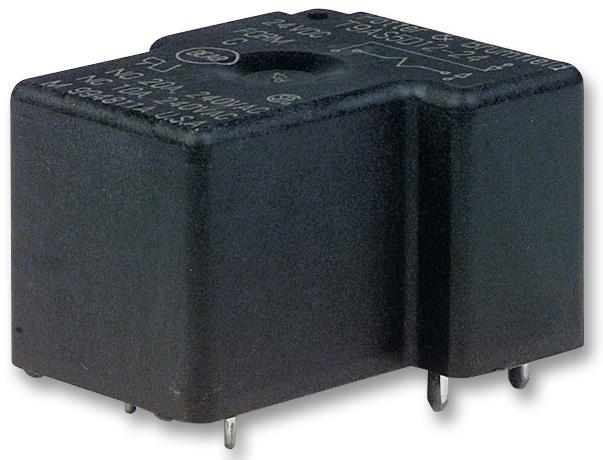

POTTER&BRUMFIELD - TE CONNECTIVITY - T9AS5D12-12 - General Purpose Relay, T9A Series, Power, Non Latching, SPDT, 12 VDC, 30 A
- Contact Configuration: SPDT
- Coil Voltage: 12VDC
- Contact Current: 30A
- Product Range: T9A Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 28VDC
- Contact Material: Silver Cadmium Oxide
- Coil Resistance: 144ohm
- SVHC: No SVHC (27-Jun-2018)
- Approvals & Standards: CSA, UL
- Coil Current: 83mA
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 20A
- Contact Current Max: 20A
- Contact Voltage AC Max: 240V
- Contact Voltage AC Nom: 240V
- Contact Voltage DC Nom: 28V
- External Depth: 27.9mm
- External Height: 32.5mm
- External Length / Height: 32.5mm
- External Width: 27.4mm
- Nom Operating Power: 1W
- Relay Type: Power
