Description

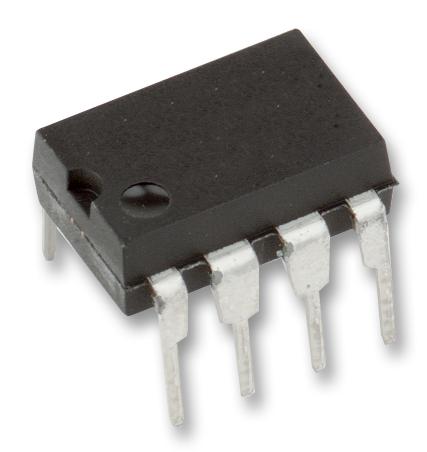

STMICROELECTRONICS - UC3842BN - Current Mode PWM Controller, 12V-25V supply, 250kHz, 13.5V/200mA out, DIP-8
- Input Voltage: 15V
- Output Voltage: 5.1V
- Output Current: 200mA
- Supply Voltage Min: 12V
- Supply Voltage Max: 25V
- Controller IC Case Style: DIP
- No. of Pins: 8Pins
- Frequency: 250kHz
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Base Number: 3845
- Controller Type: PWM
- Device Marking: UC3842BN
- IC Generic Number: 3842
- Logic Function Number: 3842
- Operating Temperature Range: -25°C to +85°C
- Output Current Max: 1A
- Output Energy per Cycle: 5µJ
- Power Dissipation Pd: 1.25W
- Power Supply IC Type: PWM controller
- Supply Voltage Range: 12V to 25V
