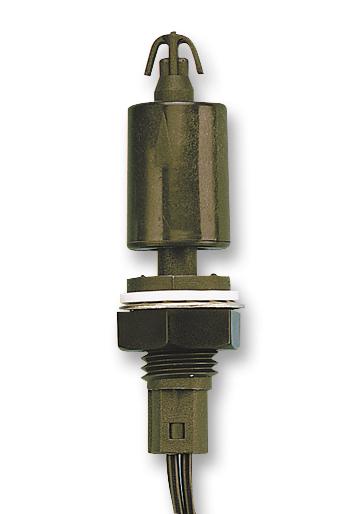

VS803-51 Float Switch, Vert Te Connectivity

TE CONNECTIVITYSKU: VS803-51 Order code: 1006799

Price:
Sale price€35,54

Tax included Shipping calculated at checkout

Stock:
In stock (384 units), ready to be shipped

Documenten en downloads

Description

TE CONNECTIVITY - VS803-51 - Float Switch, VS Series, Vertical, SPST-NO, Polypropylene, 15 W, 250 Vac

  • Operating Pressure Max: 4bar
  • Sensor Body Material: PP (Polypropylene)
  • Output Current: -
  • Product Range: VS Series
  • Approval Bodies: UL, WRC
  • Body Material: PP (Polypropylene)
  • Colour: Charcoal
  • Contact Configuration: SPST
  • Contact Current AC Max: 1A
  • Contact Voltage AC Max: 250V
  • External Length / Height: 89mm
  • Fixing Hole Diameter: 23mm
  • Float Diameter: 22.2mm
  • Lead Length: 0.5m
  • Material: Polypropylene
  • Operating Pressure Range: 0bar to 4bar
  • Operating Temperature Max: 110°C
  • Operating Temperature Min: -30°C
  • Power Rating: 15W
  • Sensor Output: SPST-NO / SPST-NC
  • Specific Gravity of Liquid Min: 0.7
  • Switching Current AC Max: 1A
  • Switching Voltage: 250VAC
  • Switching Voltage AC / DC Max: 250VAC
