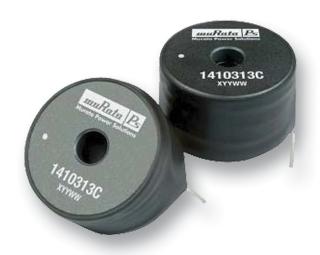

MURATA POWER SOLUTIONS - 1433507C - Inductor, 1400 Series, 3.3 mH, 700 mA, 700 mA, 1.428 ohm, ± 10%
- Product Range: 1400 Series
- Inductance: 3.3mH
- RMS Current (Irms): 700mA
- Saturation Current (Isat): 700mA
- DC Resistance Max: 1.428ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (07-Jul-2017)
- DC Current Rating: 700mA
- Inductor Case Style: Radial Leaded
- Lead Spacing: 23mm
- No. of Pins: 2Pins
- Q Factor: 45
- Q Test Frequency: 50kHz
- Self Resonant Frequency Min: 800kHz
