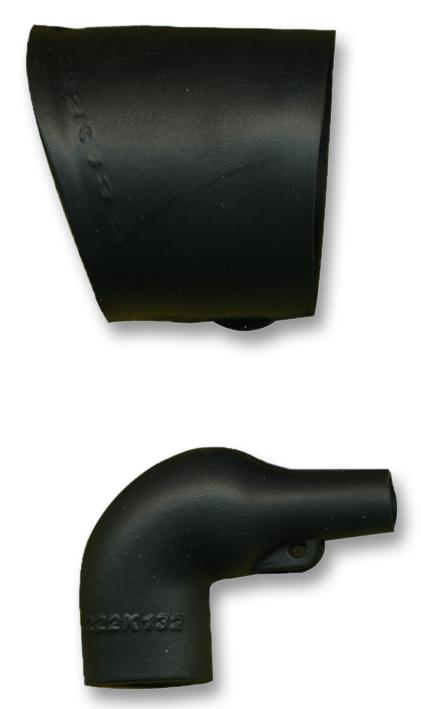

RAYCHEM - TE CONNECTIVITY - 222K132-25-0 - Heat Shrink Boot, Moulded, Right Angle Lipped, 1.181 ", 30 mm, Black, 1.26 ", 32 mm
- Boot Configuration: Right Angle Lipped
- I.D. Supplied - Imperial: 1.181"
- I.D. Supplied - Metric: 30mm
- Shrink Tubing / Boot Colour: Black
- Total Length - Imperial: 1.26"
- Total Length - Metric: 32mm
- I.D. Recovered Max - Imperial: 0.56"
- I.D. Recovered Max - Metric: 5.9mm
- Shrink Tubing / Boot Material: Elastomer
- Shrink Ratio: 2.3
- Product Range: System 25 Series
- SVHC: No SVHC (15-Jan-2019)
- Accessory Type: Heat Shrink Boot
- Cable Diameter Max: 30mm
- Cable Diameter Min: 5.9mm
- Fully Shrunk Diameter: 14.2mm
- Shrink Boot Type: Right-Angled, Lipped Boot
- Shrink Temperature: 135°C
- Wall Thickness Recovered: 0.61mm
