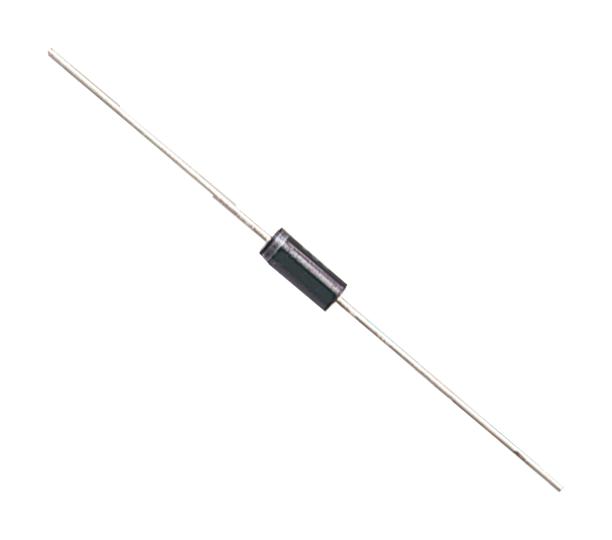

STMICROELECTRONICS - BZW04-5V8B - TVS Diode, BZW04, Bidirectional, 5.8 V, 10.5 V, DO-15, 2 Pins
- Product Range: BZW04 Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 5.8V
- Clamping Voltage Vc Max: 10.5V
- Diode Case Style: DO-15
- No. of Pins: 2Pins
- Breakdown Voltage Min: 6.45V
- Breakdown Voltage Max: 6.45V
- Peak Pulse Power Dissipation: 400W
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Alternate Case Style: DO-204AC
- Breakover Voltage Min: 6.45V
- Capacitance Cd @ Vr Typ: 3500pF
- Clamping Voltage @ 8/20µs Max: 13.4V
- Diode Type: Bidirectional TVS
- Peak Pulse Current Ippm: 30A
- Power Dissipation Pd: 1.7W
- Stand-off Voltage: 5.8V
- Temperature Coefficient (ppm): 5.7ppm/°C
