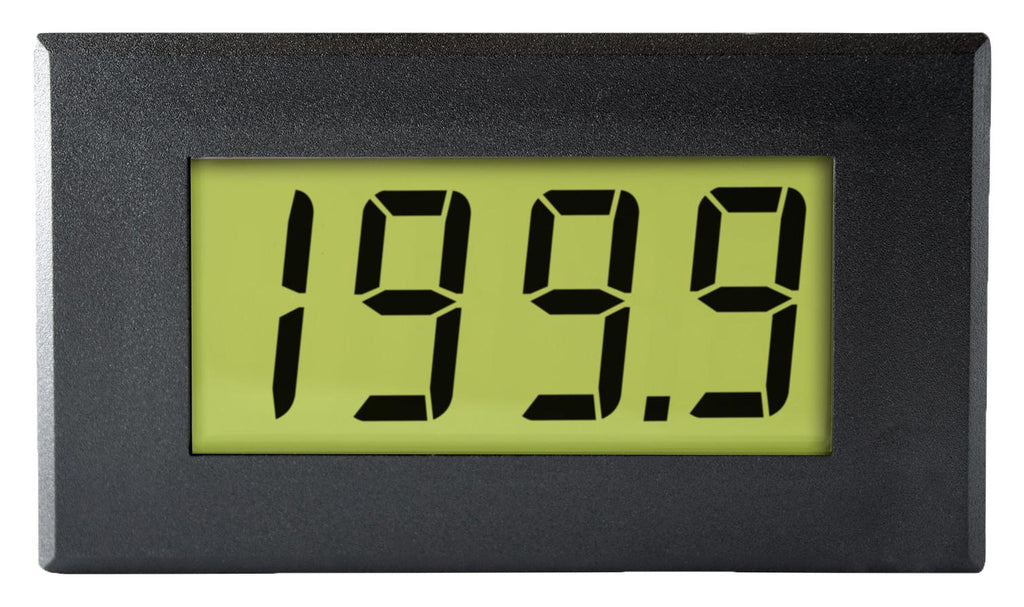

LASCAR - DPM950S - Panel Display, Compact, 3.5 Digit, LCD, 9 Vdc, 150 µA
- Supply Voltage Min: 3.5VDC
- Supply Voltage Max: 6.5VDC
- Backlighting Colour: -
- No. of Digits / Alpha: 3-1/2
- Display Size: 51mm x 24mm
- Screen Size: 0.48"
- Panel Cutout Height: 40mm
- Panel Cutout Width: 72mm
- Panel Cutout Diameter: -
- Operating Temperature Min: 0°C
- Operating Temperature Max: 50°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Accuracy: 0.05% ± 1
- Accuracy %: 0.05%
- Backlight Current: 50mA
- Character Size: 19mm
- Digit Height: 19mm
- Display Technology: LCD
- External Depth: 11.3mm
- External Length / Height: 39mm
- External Width: 76mm
- Fixing Hole Diameter: 3.2mm
- Linearity: ± 1 digit
- Meter Function: DC Voltage
- Meter Range: 0mV to 200mV
- Operating Temperature Range: 0°C to +50°C
- Supply Current: 150µA
- Supply Voltage DC Max: 6.5V
- Supply Voltage DC Min: 3.5V
- Supply Voltage Range: 3.5V DC to 6.5V DC
- Temperature Stability + @: 100 ppm/C
