description
ONSEMI - S2B - Standard Recovery Diode, 100 V, 2 A, Single, 1.15 V, 2 µs, 50 A
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 2A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.15V
- Reverse Recovery Time trr Max: 2µs
- Forward Surge Current Ifsm Max: 50A
- Operating Temperature Max: 150°C

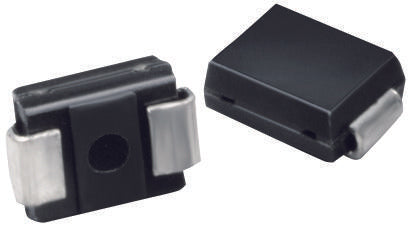

- Diode Case Style: DO-214AA
- No. of Pins: 2Pins
- Product Range: S2B Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Current Ifsm: 50A
- Diode Type: Standard Recovery
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Reverse Recovery Time trr Typ: 2µs
- Termination Type: Surface Mount Device
