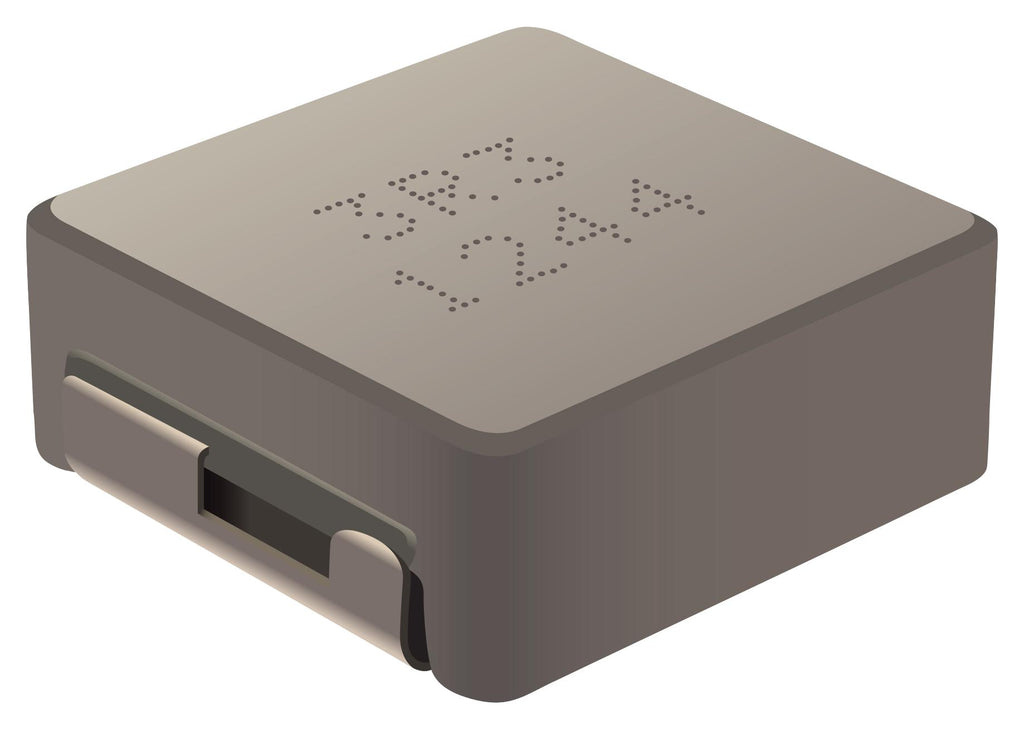

BOURNS - SRP1770TA-4R7M - Power Inductor (SMD), 4.7 µH, 25 A, Shielded, 50 A, SRP1770TA
- Inductance: 4.7µH
- RMS Current (Irms): 25A
- Inductor Construction: Shielded
- Saturation Current (Isat): 50A
- Product Range: SRP1770TA Series
- Power Inductor Case: 16.9mm x 16.9mm x 6.7mm
- DC Resistance Max: 0.0055ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Automotive Qualification Standard: AEC-Q200
