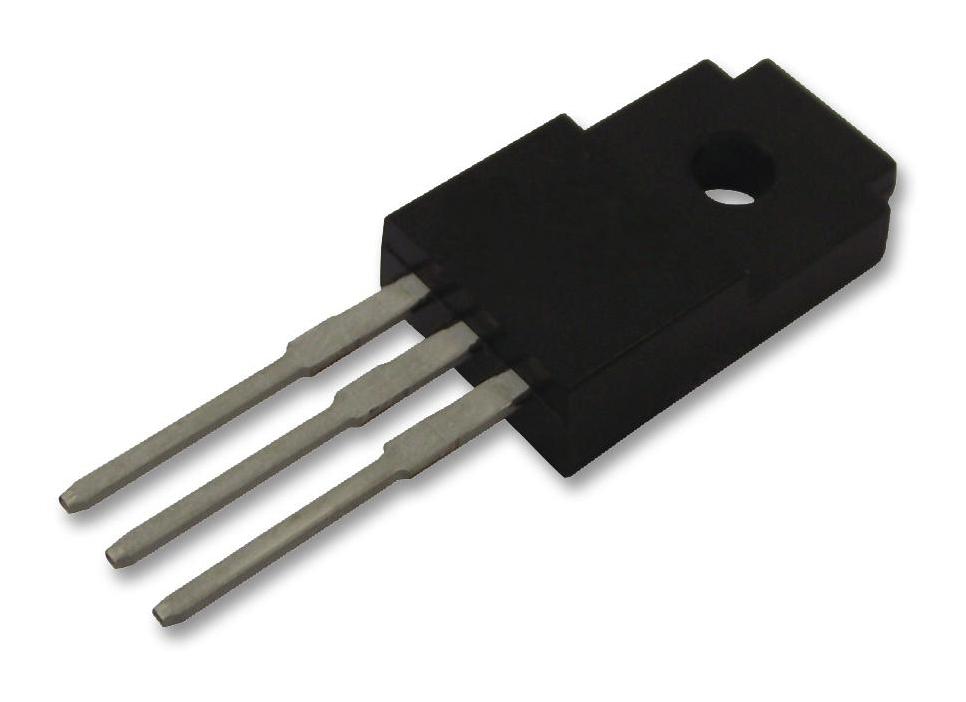

STMICROELECTRONICS - STP80NF10FP - Power MOSFET, N Channel, 100 V, 40 A, 0.012 ohm, TO-220FP, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 40A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 0.012ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 45W
- Transistor Case Style: TO-220FP
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 38A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Termination Type: Through Hole
- Transistor Type: Power MOSFET
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
