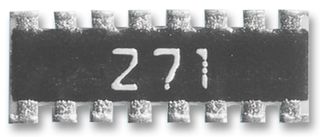

![YC248-JR-071KL - Fixed Network Resistor, 1 kohm, Isolated, 8 Resistors, 1606 [4016 Metric], Convex, ± 5% - YAGEO](http://www.sinuss.be/cdn/shop/products/farnell_1377053.jpg?v=1680009177&width=320)
![YC248-JR-071KL - Fixed Network Resistor, 1 kohm, Isolated, 8 Resistors, 1606 [4016 Metric], Convex, ± 5% - YAGEO](http://www.sinuss.be/cdn/shop/products/farnell_1377053_1024x.jpg?v=1680009177)
Documenten en downloads
description
- Network Circuit Type: Isolated
- No. of Resistors: 8Resistors
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Power Rating: 62.5mW
- Power Rating per Resistor: 62.5mW
- Product Height: 0.45mm
- Product Length: 4mm
- Product Range: YC Series
- Product Width: 1.6mm
- Qualification: -
- Resistance: 1kohm
- Resistance Tolerance: ± 5%
- Resistor Case / Package: 1606 [4016 Metric]
- Resistor Mounting: Surface Mount Device
- Resistor Technology: Thick Film
- Resistor Terminals: Convex
- Resistor Type: Array
- Temperature Coefficient: ± 200ppm/°C
- Terminal Pitch: 0.5mm
