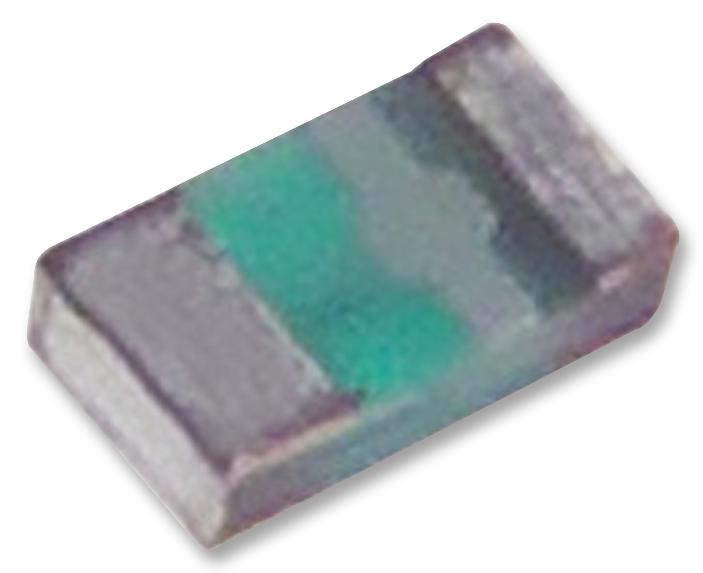

LITTELFUSE - 04351.25KR - Fuse, Surface Mount, 1.25 A, Very Fast Acting, 32 VAC, 32 VDC, 0402 (1005 Metric), 435
- Fuse Current: 1.25A
- Product Range: 435 Series
- Voltage Rating VAC: -
- Voltage Rating V DC: 32VDC
- Blow Characteristic: Very Fast Acting
- Fuse Case Style: 0402
- Breaking Capacity Current AC: -
- Breaking Capacity Current DC: 35A
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Breaking Capacity: 35A @ 32V DC
- Case Material: Epoxy / Glass Substrate
- External Depth: 0.508mm
- External Length / Height: 0.29mm
- External Width: 0.99mm
- Fuse Type Blowing Characteristic: Very Fast Acting
- Operating Temperature Max: 90°C
- Operating Temperature Min: -55°C
