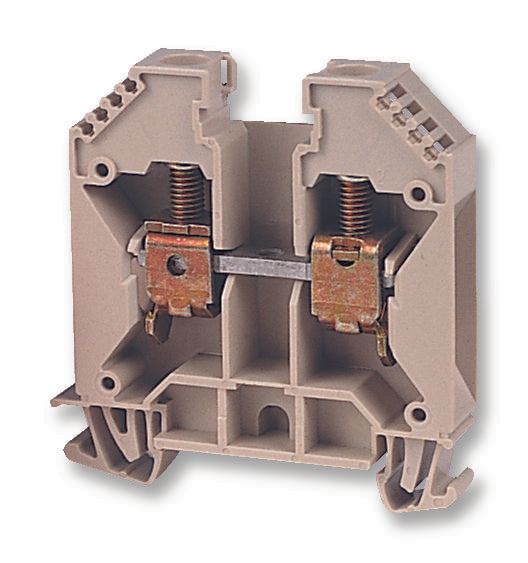

WEIDMULLER - 102040 WDU16 - DIN Rail Mount Terminal Block, 2 Ways, 18 AWG, 4 AWG, 25 mm², Screw, 76 A
- No. of Positions: 2Ways
- Wire Size AWG Min: 18AWG
- Wire Size AWG Max: 4AWG
- Conductor Area CSA: 25mm²
- Wire Connection Method: Screw
- Rated Current: 76A
- Rated Voltage: 1kV
- No. of Levels: 1
- Product Range: W-Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, DEMKO, LCIE, LLOYDS, SETI , SEV, UL
- Colour: Beige
- Connector Mounting: DIN Rail Mount
- Connector Type: Terminal Block, DIN Rail
- External Length / Height: 63mm
- External Width: 60mm
- Flexible Wire Area Size Max: 16mm²
- Pitch Spacing: 12mm
- Voltage Rating VAC: 750V
- Wire Area Size Max: 25mm²
- Wire Area Size Min: 1.5mm²
- Working Voltage: 750V
