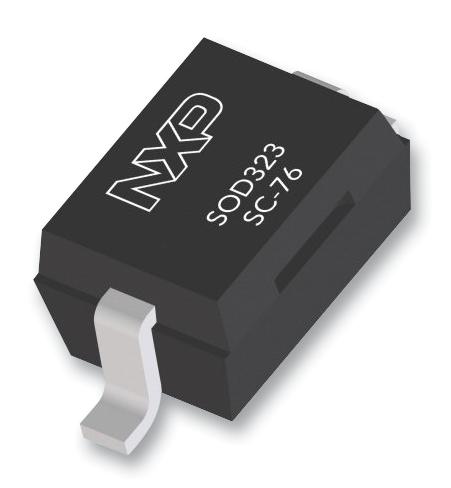

NEXPERIA - 1PS76SB21,115 - Small Signal Schottky Diode, Single, 40 V, 200 mA, 550 mV, 1 A, 150 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 550mV
- Forward Surge Current Ifsm Max: 1A
- Operating Temperature Max: 150°C
- Diode Case Style: SOD-323
- No. of Pins: 2Pins
- Product Range: 1PS76SB Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Alternate Case Style: SC-76
- Current If @ Vf: 200mA
- Current Ifsm: 1A
- Diode Type: Schottky
- Forward Voltage: 300mV
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- SMD Marking: S0
