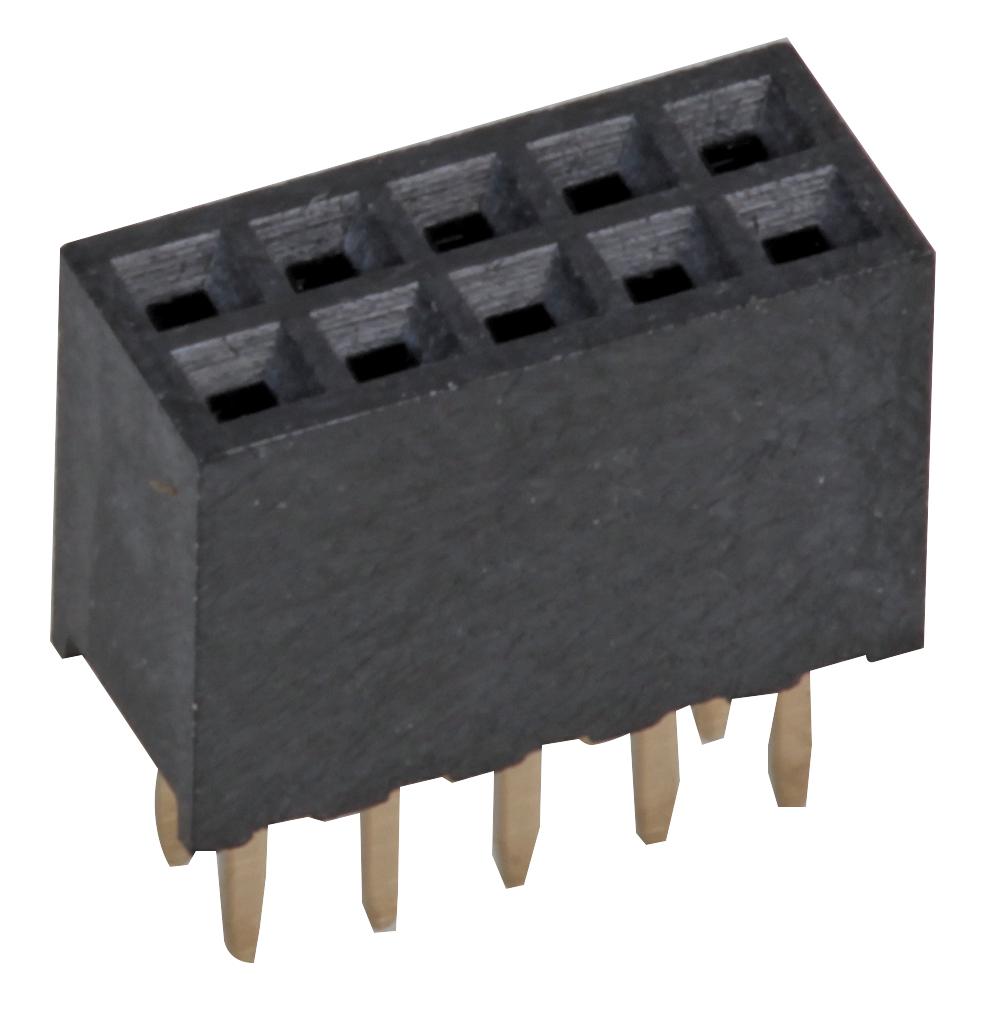

MULTICOMP PRO - 2200SB-10G-A1 - PCB Receptacle, Board-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Through Hole Mount, 220SB
- Pitch Spacing: 1.27mm
- No. of Contacts: 10Contacts
- Gender: Receptacle
- Product Range: 220SB Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 20mohm
- Contact Termination: Solder
- Current Rating: 1A
- External Length / Height: 4.5mm
- Insulation Resistance: 1000Mohm
- Lead Spacing: 1.27mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -25°C
- Row Pitch: 1.27mm
- Termination Method: Solder
- Voltage Rating VAC: 50V
- Withstand Voltage: 500V
