Omschrijving

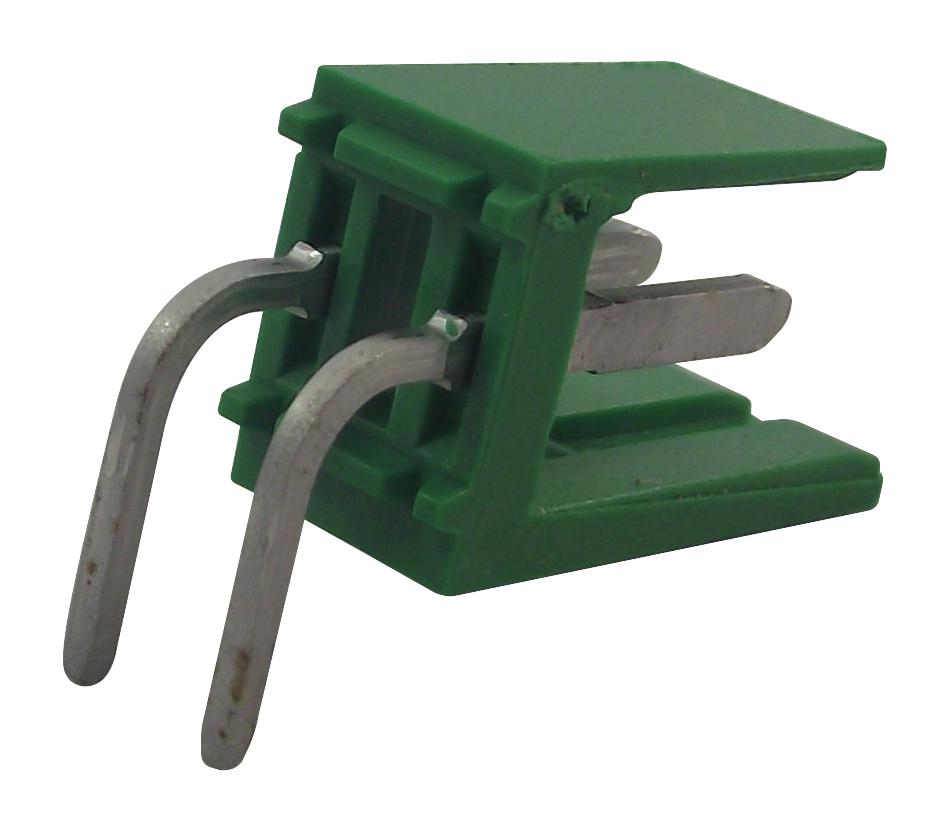

AMP - TE CONNECTIVITY - 280615-1 - Pin Header, Single In Line, Wire-to-Board, 3.96 mm, 1 Rows, 2 Contacts, Through Hole Right Angle
- Pitch Spacing: 3.96mm
- No. of Contacts: 2Contacts
- Gender: Header
- Product Range: AMPMODU MOD I Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (27-Jun-2018)
- Contact Resistance: 12mohm
- Flammability Rating: UL94V-1
- Insulation Resistance: 5000Mohm
- Material: Polycarbonate
- Operating Temperature Max: 60°C
- Operating Temperature Min: -65°C
