Omschrijving

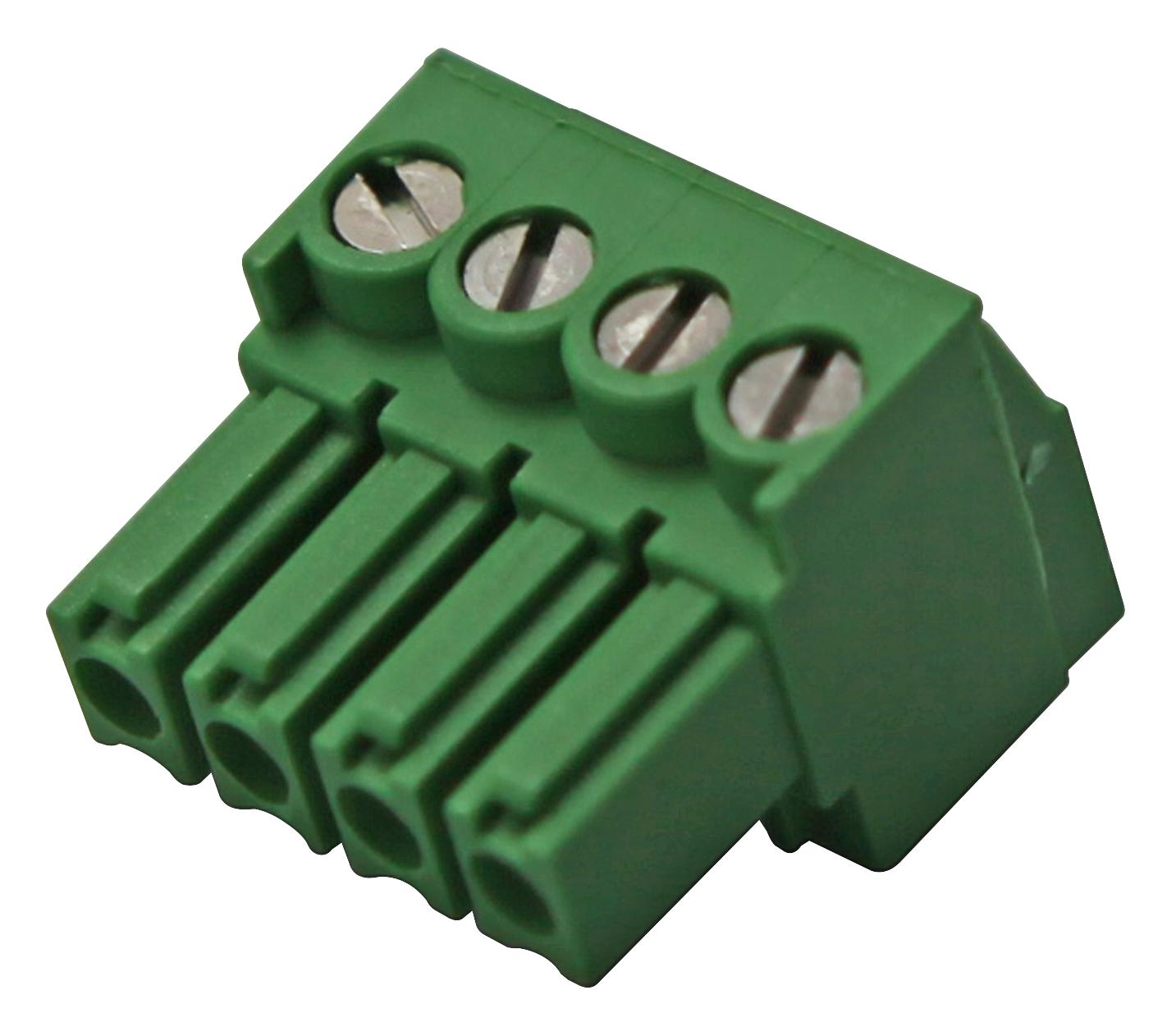

BUCHANAN - TE CONNECTIVITY - 284506-4 - Pluggable Terminal Block, 3.5 mm, 4 Ways, 30AWG to 14AWG, 2 mm², Screw, 11 A
- Pitch Spacing: 3.5mm
- No. of Positions: 4Ways
- Wire Size (AWG): 30AWG to 14AWG
- Conductor Area CSA: 2mm²
- Wire Connection Method: Screw
- Rated Current: 11A
- Rated Voltage: 300V
- Product Range: -
- SVHC: Lead (27-Jun-2018)
- Connector Mounting: Through Hole Mount
- Connector Type: Terminal Block, Pluggable
- Contact Material: Phosphor Bronze
- Gender: Plug
- No. of Contacts: 4Contacts
- Wire Size AWG Max: 14AWG
- Wire Size AWG Min: 30AWG
