Omschrijving

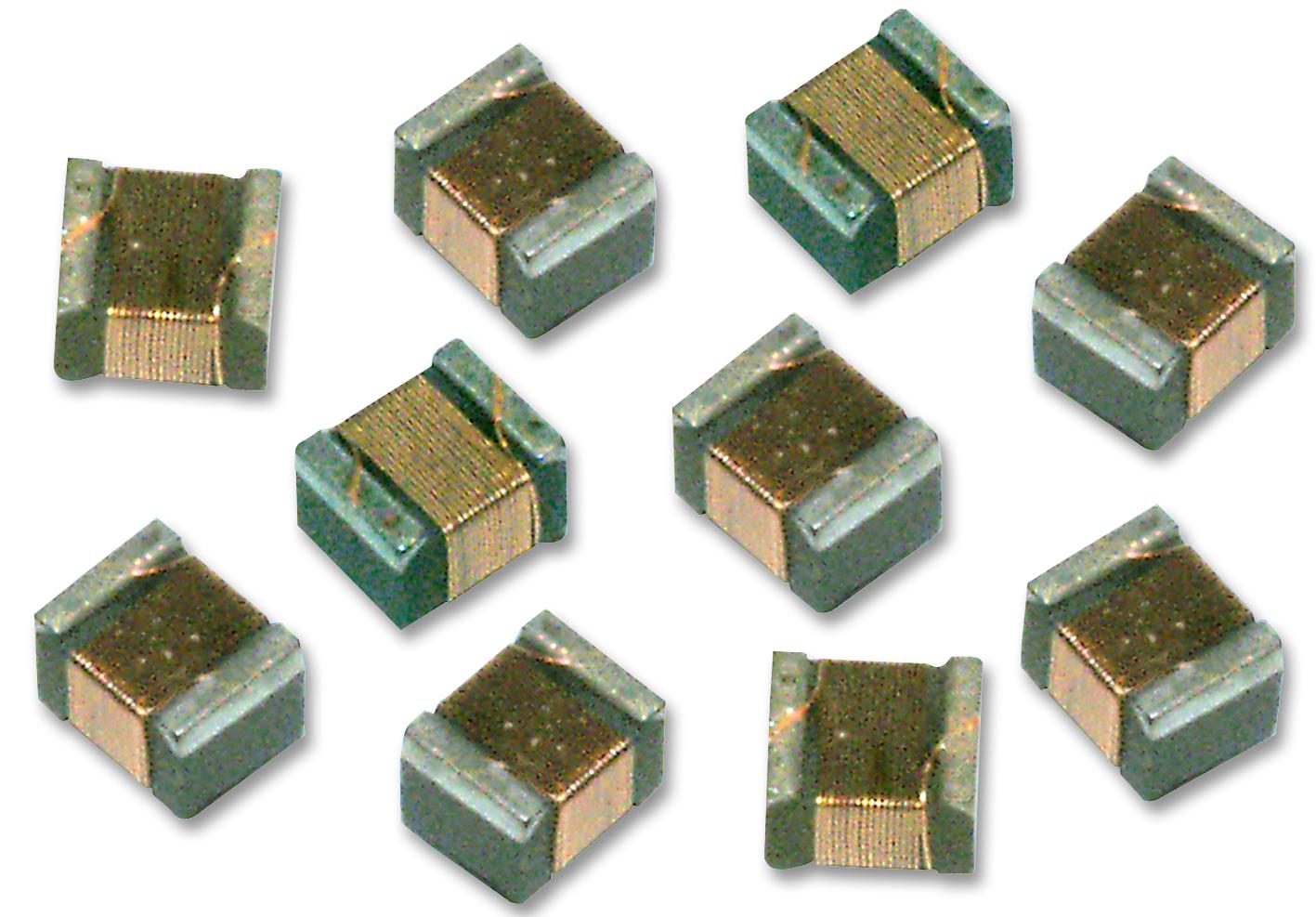

TE CONNECTIVITY - 36501J027JTDG - Wirewound Inductor, 27 nH, 0.22 ohm, 2.8 MHz, 600 mA, 0603 [1608 Metric], 3650
- Inductance: 27nH
- Product Range: 3650 Series
- DC Current Rating: 600mA
- High Frequency Inductor Case: 0603 [1608 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.22ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 2.8MHz
- External Depth: 1.02mm
- External Length / Height: 1.8mm
- External Width: 1.12mm
- Inductor Case Style: 0603 [1608 Metric]
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
