Omschrijving

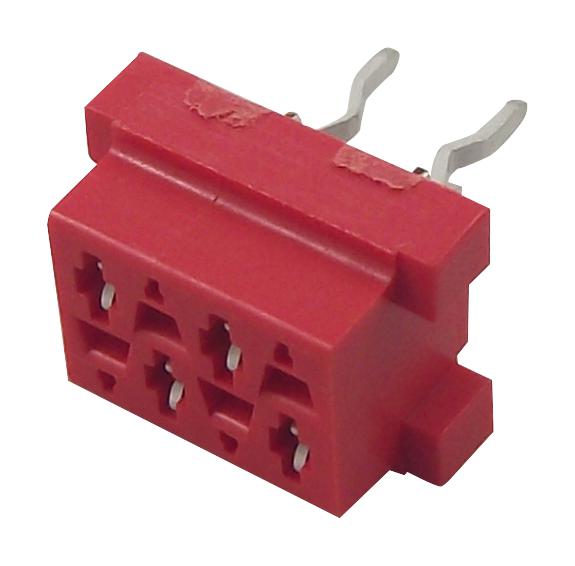

AMP - TE CONNECTIVITY - 7-215079-4 - PCB Receptacle, Board-to-Board, 1.27 mm, 2 Rows, 4 Contacts, Through Hole Mount, Micro-MaTch
- Pitch Spacing: 1.27mm
- No. of Contacts: 4Contacts
- Gender: Receptacle
- Product Range: Micro-MaTch Series
- Contact Termination Type: Through Hole
- No. of Rows: 2Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: UL
- Colour: Red
- Contact Resistance: 10mohm
- Contact Termination: Through Hole Vertical
- Current Rating: 1.5A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Insulator Material: Thermoplastic
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Termination Method: Solder
- Working Voltage: 100V
