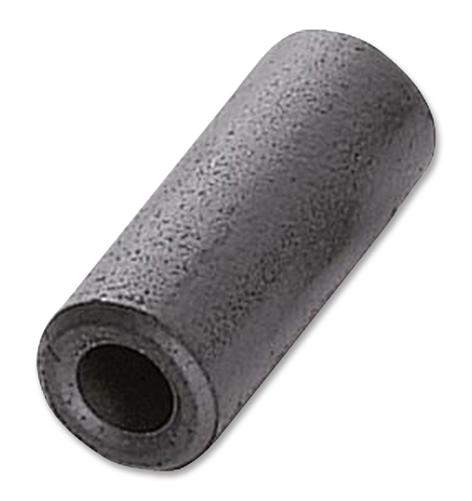

WURTH ELEKTRONIK - 74270031 - Ferrite Core, Cylindrical, 625 ohm, 20.5 mm Length, 5 mm ID, 11.5 mm OD, WE-AFB Series
- Outer Diameter: 11.5mm
- Length: 20.5mm
- Inner Diameter: 5mm
- Frequency Min: -
- Frequency Max: -
- Impedance @ 100MHz: 625ohm
- Product Range: WE-AFB Series
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 4.6mm
- External Diameter: 11.5mm
- External Length / Height: 20.5mm
- Ferrite Case Style: Tubular
- Impedance @ 25MHz Typ: 6.8ohm
- Internal Diameter: 5mm
- Material Grade: 4 W 1500
- Operating Temperature Max: 125°C
- Operating Temperature Min: -25°C
