Documenten en downloads
Omschrijving

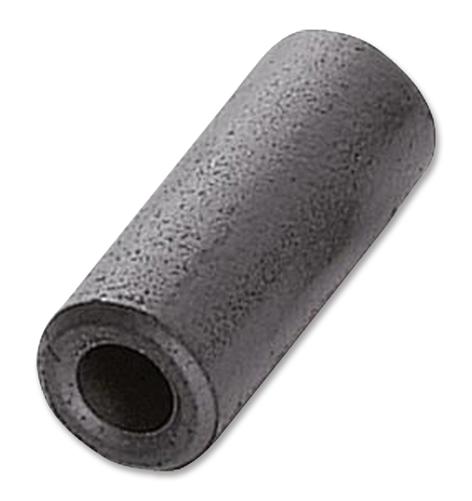

WURTH ELEKTRONIK - 7427004 - Ferrite Core, Cylindrical, 709 ohm, 28.6 mm Length, 6.3 mm ID, 14.1 mm OD, WE-AFB Series
- Outer Diameter: 14.1mm
- Length: 28.6mm
- Inner Diameter: 6.3mm
- Frequency Min: -
- Frequency Max: -
- Impedance @ 100MHz: 709ohm
- Product Range: WE-AFB Series
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 5.9mm
- External Diameter: 14.1mm
- External Length / Height: 28.6mm
- Ferrite Case Style: Tubular
- Height: 28.6mm
- Impedance @ 25MHz Typ: 767ohm
- Internal Diameter: 6.3mm
- Material Grade: 4 W 620
- Operating Temperature Max: 125°C
- Operating Temperature Min: -25°C
