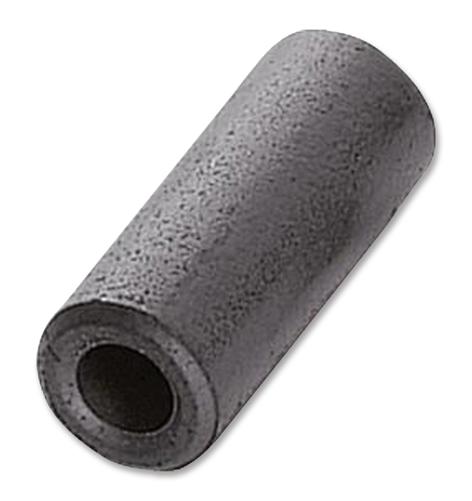

WURTH ELEKTRONIK - 74270063 - Ferrite Core, Cylindrical, 130 ohm, 12.7 mm Length, 7.92 mm ID, 12.7 mm OD, WE-AFB Series
- Outer Diameter: 12.7mm
- Length: 12.7mm
- Inner Diameter: 7.92mm
- Frequency Min: -
- Frequency Max: -
- Impedance @ 100MHz: 130ohm
- Product Range: WE-AFB Series
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 7.6mm
- External Diameter: 12.7mm
- External Length / Height: 12.7mm
- Ferrite Case Style: Tubular
- Height: 12.7mm
- Impedance @ 25MHz Typ: 70ohm
- Internal Diameter: 7.92mm
- Material Grade: 4 W 620
- Operating Temperature Max: 125°C
- Operating Temperature Min: -25°C
