Omschrijving

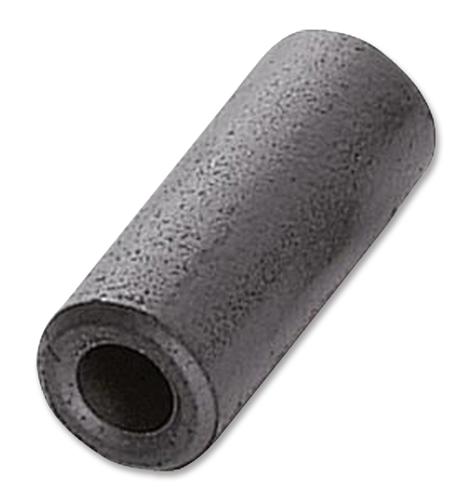

WURTH ELEKTRONIK - 74270094 - Ferrite Core, Cylindrical, 450 ohm, 18 mm Length, 10.7 mm ID, 17.5 mm OD, WE-AFB Series
- Outer Diameter: 17.5mm
- Length: 18mm
- Inner Diameter: 10.7mm
- Frequency Min: -
- Frequency Max: -
- Impedance @ 100MHz: 450ohm
- Product Range: WE-AFB Series
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 10mm
- External Diameter: 17.5mm
- External Length / Height: 18mm
- Ferrite Case Style: Tubular
- Height: 18mm
- Impedance @ 25MHz Typ: 270ohm
- Internal Diameter: 10.7mm
- Material Grade: 4 W 620
- Operating Temperature Max: 125°C
- Operating Temperature Min: -25°C
