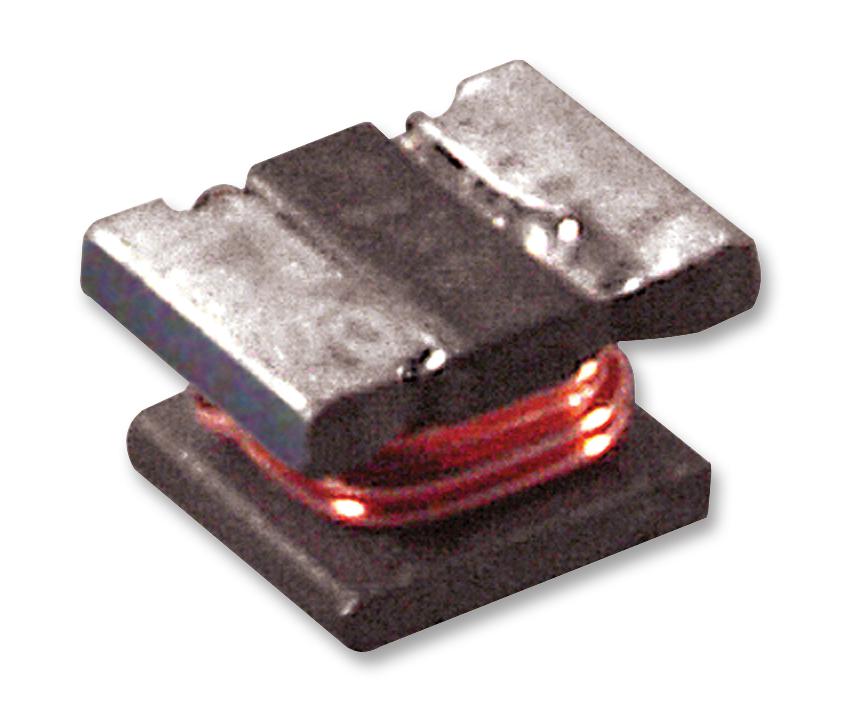

WURTH ELEKTRONIK - 744045002 - Power Inductor (SMD), 2.2 µH, 1.6 A, Unshielded, 2.75 A, WE-LQ, 4.5mm x 3.2mm x 2.6mm
- Inductance: 2.2µH
- RMS Current (Irms): 1.6A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.75A
- Product Range: WE-LQ Series
- Power Inductor Case: 4.5mm x 3.2mm x 2.6mm
- DC Resistance Max: 0.11ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 3.2mm
- External Length / Height: 2.6mm
- External Width: 4.5mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 40
- Q Test Frequency: 1MHz
- Resonant Frequency: 80MHz
- Self Resonant Frequency Min: 80MHz
- Test Frequency: 1MHz
