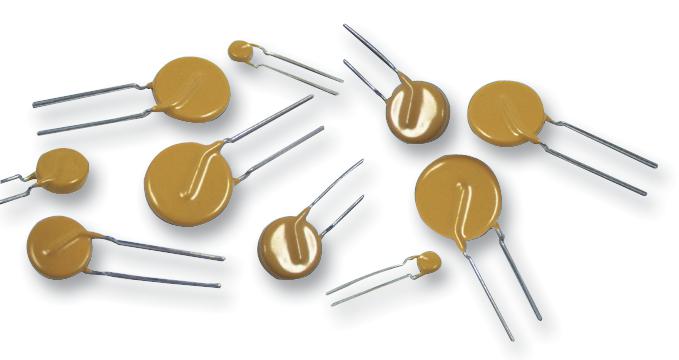

WURTH ELEKTRONIK - 820541311 - TVS Varistor, 130 V, 170 V, WE-VD, 340 V, Disc 14mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 130V
- Voltage Rating V DC: 170V
- Product Range: WE-VD Series
- Clamping Voltage Vc Max: 340V
- Varistor Case Style: Disc 14mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 4.5kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 57J
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 14mm
- Capacitance: 840pF
- Clamping Voltage: 340V
- Clamping Voltage @ 8/20µs Max: 340V
- Operating Temperature Range: -40°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 4500A
- Suppressor Type: Varistor
- Surge Current: 4.5kA
