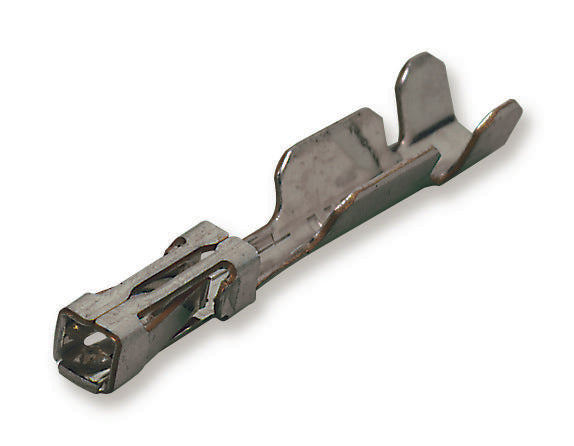

AMP - TE CONNECTIVITY - 86016-5 - Contact, AMPMODU Mod IV, Socket, Crimp, 20 AWG, Gold Plated Contacts, Mod IV Series Connectors
- Product Range: AMPMODU Mod IV Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 20AWG
- Contact Plating: Gold Plated Contacts
- For Use With: Mod IV Series Connectors
- Wire Size AWG Min: 24AWG
- Contact Material: Beryllium Copper
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 0.81mm
- Cable Diameter Min: 0.4mm
- Contact Termination: Crimp
- Current Rating: 3A
- External Length / Height: 11.94mm
- Height: 11.94mm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -65°C
