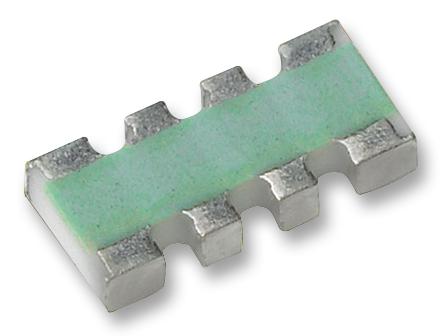

VISHAY - ACASA4702E4702P100 - Resistor Network, 47 kohm, ACAS, 47 kohm, 4 Elements, Isolated, 0612 [1632 Metric]
- Resistance: 47kohm
- Product Range: ACAS Series
- No. of Elements: 4Elements
- Network Circuit Type: Isolated
- Resistor Case Style: 0612 [1632 Metric]
- No. of Pins: 8Pins
- Voltage Rating: 75V
- Power Rating per Element: 125mW
- Resistance Tolerance: ± 0.25%
- Temperature Coefficient: ± 25ppm/K
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jun-2015)
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +155°C
- Power Rating: 300mW
- Resistance R1: 47kohm
- Resistor Element Material: Thin Film
- Resistor Mounting: Surface Mount Device
