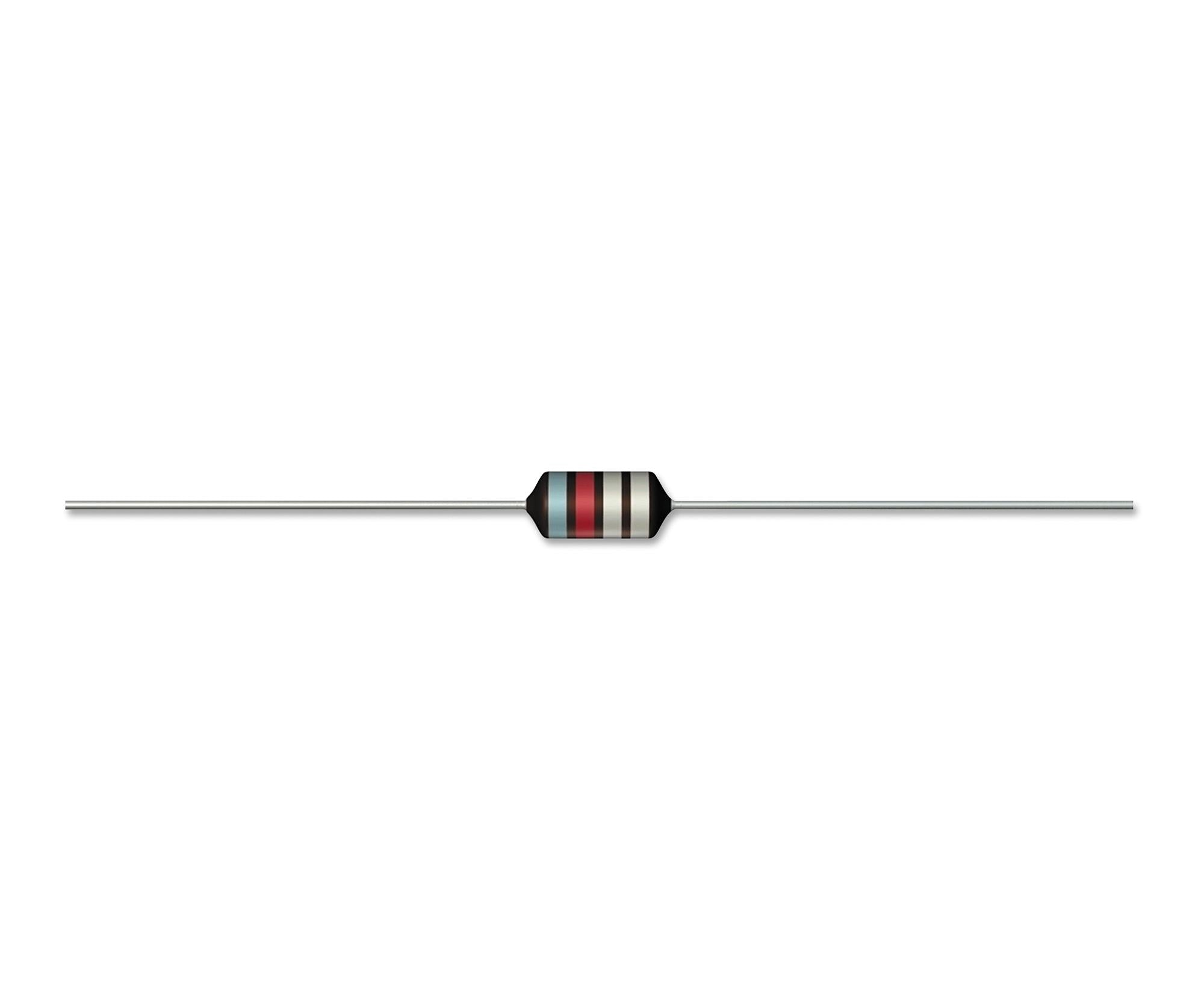

EPCOS - B82144A2224J000 - RF Choke, B82144A LBC, 220 µH, 400 mA, 1.6 ohm, ± 5%, 2.4 MHz
- Product Range: B82144A LBC Series
- Inductance: 220µH
- DC Current Rating: 400mA
- DC Resistance Max: 1.6ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 2.4MHz
- SVHC: Lead (27-Jun-2018)
- Body Diameter: 5.2mm
- Climatic Category: 55/125/56
- Core Material: Ferrite
- Current Rating: 400mA
- External Length / Height: 14.8mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.63mm
- No. of Pins: 2Pins
- Q Factor: 50
- Q Test Frequency: 796kHz
- Tolerance +: 5%
- Tolerance -: 5%
