Documenten en downloads
Omschrijving

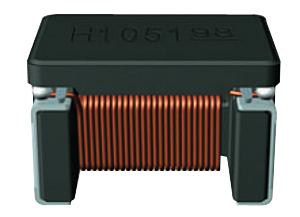

EPCOS - ACT45B-101-2P-TL003 - Choke, Common Mode, 100 µH, ACT45B Series, 5.8 kohm, 150 mA, 4.5mm x 3.2mm x 3mm
- Rated Current: 150mA
- Inductance: 100µH
- Product Range: ACT45B Series
- Impedance: 5.8kohm
- Common Mode Filter Case: 4.5mm x 3.2mm x 3mm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ferrite
- DC Current Max: 150mA
- DC Current Rating: 150mA
- DC Resistance Max: 3ohm
- Inductance Tolerance: -30% to +50%
- Inductor Case Style: SMD
- No. of Pins: 4Pins
- Voltage Rating: 50V
