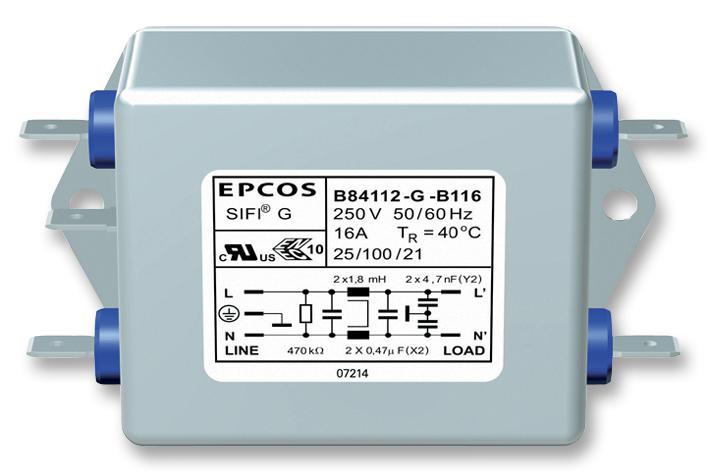

EPCOS - B84112G0000B116 - Power Line Filter, Chassis, General Purpose, 250 VAC, 16 A, Single Phase, 1 Stage, Chassis Mount
- Current Rating: 16A
- Voltage Rating: 250V
- Filter Type: Standard
- Filter Terminals: Quick Connect
- Inductance Min: 1.8mH
- Capacitance: 0.47µF
- Leakage Current Max: 500µA
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Capacitance X: 0.47µF
- Capacitance Y: 4700pF
- External Depth: 29mm
- External Length / Height: 89.5mm
- External Width: 52mm
- Height: 89.5mm
- Inductance L1: 1.8mH
- Inductance L2: 1.8mH
- Leakage Current: 500µA
- No. of Inductors: 2
- No. of Phases: Single Phase
- No. of X Type Capacitors: 2
- No. of Y Type Capacitors: 2
- Voltage Rating VAC: 250V
