Omschrijving

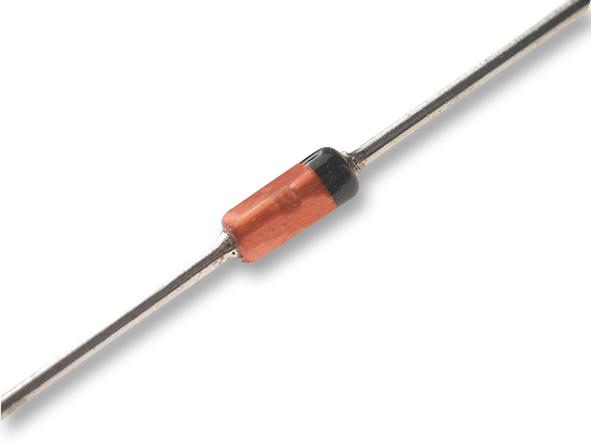

STMICROELECTRONICS - BAT41 - Small Signal Schottky Diode, Single, 100 V, 100 mA, 450 mV, 750 mA, 125 °C
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 450mV
- Forward Surge Current Ifsm Max: 750mA
- Operating Temperature Max: 125°C
- Diode Case Style: DO-35
- No. of Pins: 2Pins
- Product Range: BAT41 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (17-Dec-2015)
- Alternate Case Style: SOD-27
- Current If @ Vf: 1mA
- Current Ifsm: 1A
- Device Marking: BAT41
- Diode Type: Schottky
- External Diameter: 1.85mm
- External Length / Height: 4.25mm
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +125°C
