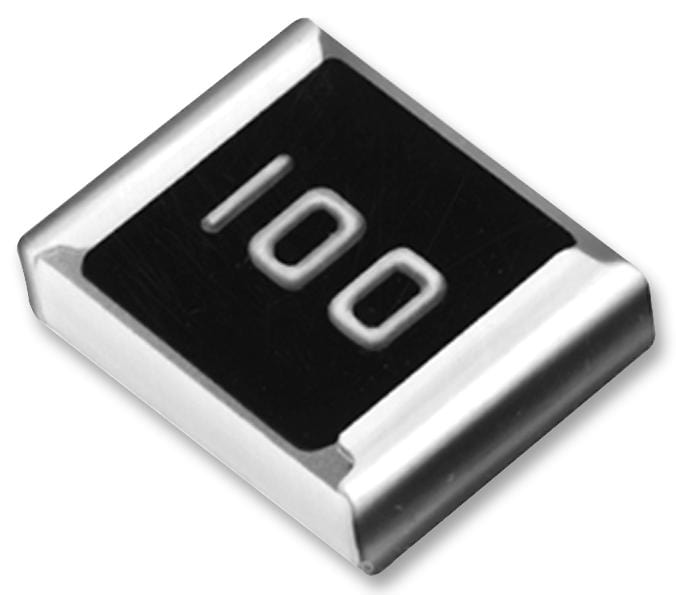

BOURNS - CRA2512-FZ-R010ELF - SMD Current Sense Resistor, 0.01 ohm, CR, 2512 [6432 Metric], 3 W, ± 1%, Metal Film
- Resistance: 0.01ohm
- Product Range: CR Series
- Resistor Case Style: 2512 [6432 Metric]
- Power Rating: 3W
- Resistance Tolerance: ± 1%
- Resistor Element Material: Metal Film
- Temperature Coefficient: ± 50ppm/°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: Lead (15-Jan-2019)
- External Depth: 0.9mm
- External Length / Height: 6.4mm
- External Width: 3.2mm
- No. of Pins: 2Pins
- Operating Temperature Max: 170°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +170°C
- Resistor Mounting: Surface Mount Device
- Temperature Coeff. +: 75ppm/°C
- Temperature Coeff. -: 75ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
