Omschrijving

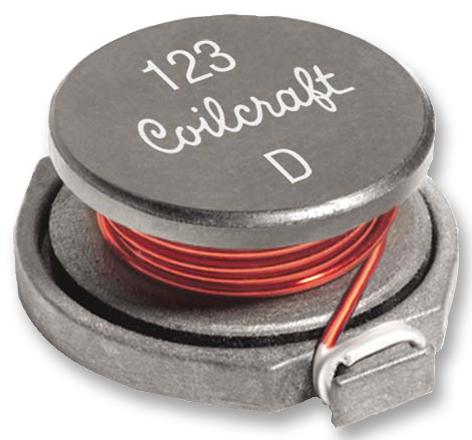

COILCRAFT - DO5010H-103MLD - Power Inductor (SMD), 10 µH, 6 A, Unshielded, 10 A, DO5010H, 18.03mm x 15.24mm x 8mm
- Inductance: 10µH
- RMS Current (Irms): 6A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 10A
- Product Range: DO5010H Series
- Power Inductor Case: 18.03mm x 15.24mm x 8mm
- DC Resistance Max: 0.026ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 28MHz
